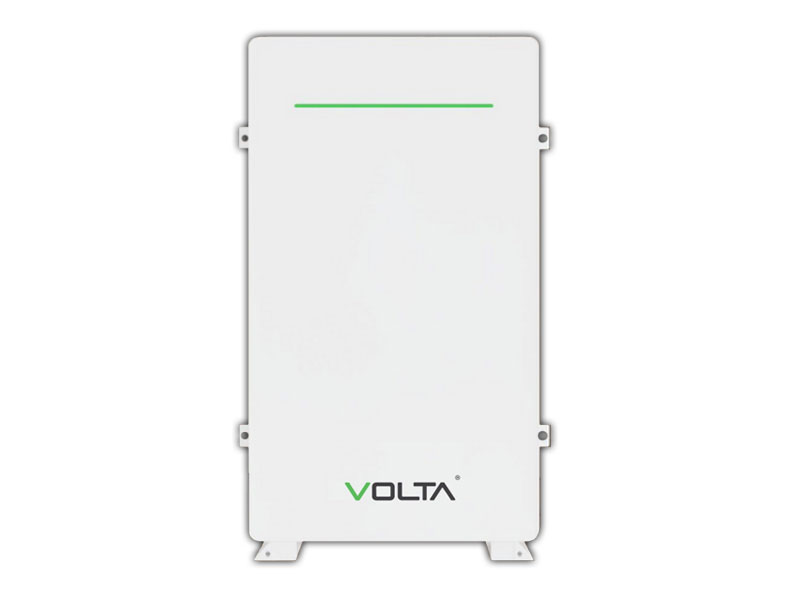

Volta Stage 4 14.34kWh 51.2V 280Ah LiFePO₄ Battery

The Volta Stage 4 14.34kWh Lithium Battery is a high-capacity 51.2V LiFePO₄ (Lithium Iron Phosphate) energy storage battery designed for residential and commercial solar energy systems. With a 14.34kWh nominal energy capacity, 280Ah capacity, and up to 200A maximum discharge current, it is engineered to provide reliable energy storage for solar self-consumption, backup power, load shedding, hybrid systems, and off-grid applications.

The Stage 4 forms part of Volta’s New Generation battery range and is designed for integration with compatible hybrid and off-grid inverter systems. It supports wall-mounted or floor-standing installation, Wi-Fi remote monitoring, and parallel expansion of up to 16 modules, providing flexibility for larger energy storage requirements.

Key Features

• 14.34kWh Nominal Energy – Provides a large energy reserve for residential and commercial applications.
• 51.2V Nominal Voltage – Designed for modern low-voltage solar and energy storage systems.
• 280Ah Battery Capacity – Offers substantial energy storage for higher-demand applications.
• LiFePO₄ Cell Technology – Provides excellent safety performance and durability.
• 200A Maximum Discharge Current – Supports higher-power loads when correctly matched with the inverter and system design.
• ≥6,000 Cycle Life – Rated at 80% Depth of Discharge under the specified test conditions.
• 1C/1C Continuous Charging and Discharging – Designed to support high-rate continuous energy cycling.
• Advanced Battery Management System – Helps manage battery operation and protection.
• Wi-Fi Remote Monitoring – Enables remote monitoring and cloud management services.
• Multiple Communication Interfaces – Supports RS485, USB, and CAN communication.
• Auto-Dial CAN Parallel Function – Simplifies communication between batteries in multi-module installations.
• Up to 16 Modules in Parallel – Allows substantial expansion of total storage capacity.
• Two Installation Methods – Can be installed using the removable floor stand or wall-mount configuration.
• Low-Voltage Safety Connection – Designed for safe low-voltage energy storage applications.
• Broad Inverter Compatibility – Compatible with a range of supported inverter brands.

Technical Specifications

Specification	Volta Stage 4
Nominal Energy	14.34kWh
Nominal Voltage	51.2V
Nominal Capacity	280Ah
Cell Type	LFP / LiFePO₄
Standard Charge Voltage	56.8V
Maximum Discharge Current	200A
Discharge Cut-Off Voltage	44.8V
Parallel Function	Auto-dial CAN
Maximum Parallel Modules	16
Communication Interface	RS485 / USB / CAN
Cycle Life	≥6,000 cycles
Test Condition	25°C ±2°C, 0.2C/0.2C, 80% DoD
Charge Temperature Range	0°C to 55°C
Discharge Temperature Range	-20°C to 55°C
Dimensions	490 × 840 × 242mm
Net Weight	123kg
Installation	Wall Mounted / Floor Standing
Wi-Fi	Wi-Fi Remote Monitoring
Pack Certification	CE / MSDS / UN38.3
Cell Certification	CE / IEC 62619 by TÜV / UL1973 by Intertek / RoHS

High-Capacity 14.34kWh Energy Storage

The 14.34kWh capacity makes the Volta Stage 4 suitable for applications where a larger battery reserve is required. It can store excess electricity generated by photovoltaic solar panels and make that energy available when solar production is reduced or unavailable.

This makes the battery ideal for:

• Solar self-consumption
• Evening energy usage
• Load shifting
• Backup power
• Load shedding protection
• Hybrid solar systems
• Off-grid installations
• Residential and commercial energy storage

High-Performance 280Ah Battery

With a 280Ah nominal capacity and 200A maximum discharge current, the Stage 4 is designed for higher-energy applications. Its 1C/1C continuous charge and discharge capability supports demanding energy storage applications when the battery is installed and configured according to the manufacturer’s requirements.

Long Cycle Life

The Volta Stage 4 is rated for at least 6,000 cycles at 80% DoD, based on the manufacturer’s stated test conditions. This makes it suitable for applications involving frequent daily charging and discharging, such as solar energy storage and load shifting.

Wi-Fi Remote Monitoring

The battery includes Wi-Fi remote monitoring and cloud management functionality, allowing users to monitor battery operation remotely through supported monitoring systems. This provides greater visibility of the energy storage system and can assist with system management and maintenance.

Flexible Installation

The Volta Stage 4 supports two installation methods:

• Wall mounted
• Floor standing using the removable floor stand

This provides installers with greater flexibility when designing the battery installation around available space and system requirements.

Expandable Battery Storage

The Stage 4 supports up to 16 battery modules in parallel, allowing the total energy storage capacity to be increased for larger residential, commercial, and off-grid installations.

When 16 Stage 4 batteries are configured together, the nominal combined storage capacity is approximately 229.44kWh, subject to system configuration and manufacturer requirements.

Inverter Compatibility

The Volta New Generation battery range is shown as compatible with a range of inverter brands, including:

• Growatt
• LuxPowerTek
• Deye
• Voltronic Power
• SMA
• GoodWe
• SRNE
• Sofar
• Victron Energy
• Solis

Actual compatibility depends on the specific inverter model, firmware, communication protocol, and approved battery configuration.

Applications

Residential Solar Storage

Store excess solar energy generated during the day and use it later in the evening or during periods of reduced solar generation.

Backup Power

Provide stored energy during grid interruptions and load-shedding events, helping maintain essential household loads when paired with a suitable inverter.

Commercial Energy Storage

The high capacity of the Stage 4 makes it suitable for businesses requiring increased energy storage for solar self-consumption, backup power, and energy management.

Off-Grid Systems

The battery can be integrated into compatible off-grid systems where reliable energy storage is essential for maintaining power availability.

Hybrid Solar Systems

Combine solar PV, battery storage, grid electricity, and a compatible hybrid inverter to improve energy utilisation and increase energy independence.

Safety and Certifications

The Volta Stage 4 uses LiFePO₄ cell technology and incorporates safety-focused battery design. The datasheet lists IEC 62619, UL, CE, and EMC certification markings, with pack certification including CE, MSDS, and UN38.3 and cell certification including CE/IEC 62619, UL1973 by Intertek, and RoHS.

Why Choose the Volta Stage 4?

• 14.34kWh high-capacity energy storage
• 51.2V / 280Ah configuration
• LiFePO₄ battery chemistry
• 200A maximum discharge current
• ≥6,000-cycle rated life
• 1C/1C continuous charge and discharge
• Wi-Fi remote monitoring
• RS485, USB and CAN communication
• Up to 16 modules in parallel
• Wall-mounted or floor-standing installation
• Suitable for residential and commercial applications
• Compatible with multiple major inverter brands

Conclusion

The Volta Stage 4 14.34kWh 51.2V 280Ah LiFePO₄ Battery is a powerful and scalable energy storage solution for modern solar and backup power systems. With its high 14.34kWh capacity, 280Ah battery configuration, 200A maximum discharge current, long cycle life, Wi-Fi monitoring, flexible installation, and support for up to 16 modules in parallel, it is well suited to customers requiring dependable and expandable energy storage.

Whether used for solar self-consumption, load shedding, backup power, hybrid energy systems, commercial applications, or off-grid installations, the Volta Stage 4 provides a high-capacity solution for storing and managing electrical energy efficiently.
